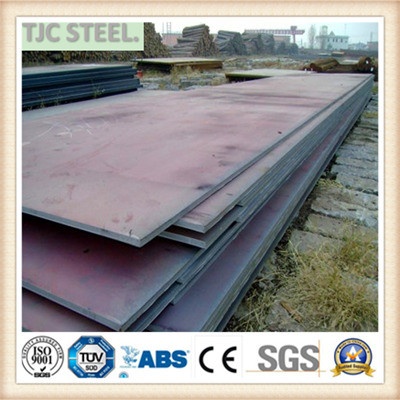

TJC Steel can supply ABS Grade AH36 shipbuilding steel plate/ marine steel plate, mainly used in construction for ships.
Production Size: Thickness: 4mm- 200mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
|
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
|
ABS Grade AH36/ ABS AH36
|
C
|
0.18
|
|
Mn
|
0.90- 1.60
|
|
Si
|
0.10- 0.50
|
|
P
|
0.035
|
|
S
|
0.035
|
Mechanical Properties( Mpa)
|
Grade/ Material
|
Tensile Test
|
Ksi/MPa
|
|
ABS Grade AH36/ ABS AH36
|
Tensile Strength
|
71-90/ 490-620
|
|
Yield Strength
|
51/ 355
|
|
Elongation
|
I: 19%
|
|
Impact Test( if any)
|
0℃
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ABS Grade AH36 Shipbuilding Steel Plate in China. For more details, please contact us freely.
|
