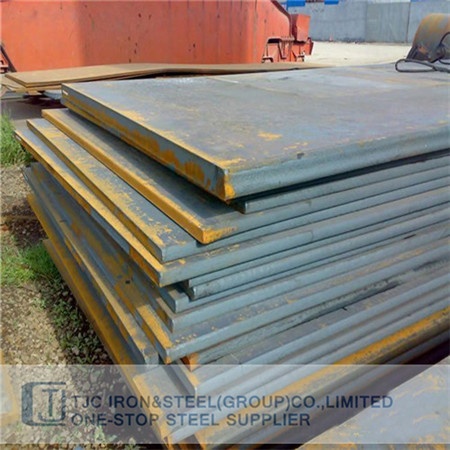

Product name : DNV Grade DH32 Shipbuilding Steel Plate

Item : DNV DH32

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

TJC Steel can supply DNV Grade DH32 shipbuilding steel plate/ marine steel plate, mainly used in construction for ships.

Production Size: Thickness: 4mm- 200mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled

Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material	Element	Composition( Max-A, Min-I)
DNV Grade DH32/ DNV DH32	C	0.18
	Mn	0.90- 1.60
	Si	0.10- 0.50
	P	0.035
	S	0.035

Mechanical Properties( Mpa)

Grade/ Material	Tensile Test	Ksi/MPa
DNV Grade DH32/ DNV DH32	Tensile Strength	64-85/ 440-590
	Yield Strength	46/ 315
	Elongation	I: 19%
	Impact Test( if any)	-20℃

TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of DNV Grade DH32 Shipbuilding Steel Plate in China. For more details, please contact us freely.

Click Here to See PDF Details for DNV Grade DH32 Shipbuilding Steel Plate
